Nexperia提供采用超扁平DSN1608-2、緊湊型DFN2020-3和超緊湊型DFN1006-2無引腳封裝的移動TVS解決方案，滿足多樣化的設計需求，同時提供高浪涌穩健性。
作為保護器件的市場領導者，Nexperia保持創新，不斷增加更多產品類型，以滿足便攜市場對小封裝高穩健性器件的需求。
PTVS瞬態電壓抑制器產品組合包括20多種類型，可滿足5 V至26 V反向工作電壓的單線保護需求。我們所有的PTVS解決方案都可以有效保護單線接口免受30 kV靜電放電的損害（IEC61000-4-2標準）。
特性和優勢
- 高浪涌穩健性：8/20 μs脈沖時為32 A至178
- 小封裝：DSN1608-2、DFN2020-3和 & DFN1006-2
- 提供20多種不同類型的廣泛產品組合
關鍵應用
- USB-PD高達20 V
- 電池線/充電器端口
- 電源線
- 硬盤和
- 音頻接口
- 電源保護
- 工業應用
- 電源管理
參數搜索
TVS for mobile applications
數據加載中，請稍候...參數搜索不可用。
產品
| 型號 | 描述 | 狀態 | 快速訪問 |
|---|---|---|---|
| PTVSxU1UPA series | 300 W Transient Voltage Suppressor | ACT |
|
| PTVS10VU1UPA | 300 W Transient Voltage Suppressor | Production | |
| PTVS12VU1UPA | 300 W Transient Voltage Suppressor | Production | |
| PTVS15VU1UPA | 300 W Transient Voltage Suppressor | Production | |
| PTVS18VU1UPA | 300 W Transient Voltage Suppressor | Production | |
| PTVS20VU1UPA | 300 W Transient Voltage Suppressor | Production | |
| PTVS22VU1UPA | 300 W Transient Voltage Suppressor | Production | |
| PTVS24VU1UPA | 300 W Transient Voltage Suppressor | Production | |
| PTVS26VU1UPA | 300 W Transient Voltage Suppressor | Production | |
| PTVS7V5U1UPA | 300 W Transient Voltage Suppressor | Production | |
| PTVS10VZ1USK | Transient voltage suppressor in DSN1608-2 for mobile applications | Production | |
| PTVS12VZ1USK | Transient voltage suppressor in DSN1608-2 for mobile applications | Production | |
| PTVS12VZ1USKN | Transient voltage suppressor in DSN1608-2 for mobile applications | EndOfLife | |
| PTVS15VZ1UPC | Transient Voltage Suppressor | Qualification | |
| PTVS15VZ1USK | Transient voltage suppressor in DSN1608-2 for mobile applications | Production | |
| PTVS18VZ1USK | Transient voltage suppressor in DSN1608-2 for mobile applications | Production | |
| PTVS20VD1UL | Ultra compact Transient Voltage Suppressor | Production | |
| PTVS20VZ1UPC | Transient Voltage Suppressor | Qualification | |
| PTVS20VZ1USK | Transient voltage suppressor in DSN1608-2 for mobile applications | Production | |
| PTVS22VZ1USK | Transient voltage suppressor in DSN1608-2 for mobile applications | Production | |
| PTVS24VZ1UPA | Transient Voltage Suppressor | Production | |
| PTVS24VZ1UPC | Transient Voltage Suppressor | Qualification | |
| PTVS26VZ1USK | Transient voltage suppressor in DSN1608-2 for mobile applications | Production | |
| PTVS28VZ1UPC | Transient Voltage Suppressor | Qualification | |
| PTVS30VZ1UPA | Transient Voltage Suppressor | Production | |
| PTVS36VZ1UPC | Transient Voltage Suppressor | Qualification | |
| PTVS3V3D1BAL | Ultra compact Transient Voltage Supressor | Production | |
| PTVS3V3Z1BSC | Ultra compact transient voltage suppressor | Production | |
| PTVS48VZ1UPC | Transient Voltage Suppressor | Qualification | |
| PTVS4V5D1BL | Ultra compact Transient Voltage Supressor | Production | |
| PTVS4V5D1BL-Q | Ultra compact Transient Voltage Supressor | Production | |
| PTVS4V8Z1UPC | Transient Voltage Suppressor | Production | |
| PTVS5V0D1UCL | Transient Voltage Suppressor | Production | |
| PTVS5V0Z1BSC | Ultra compact transient voltage suppressor | Production | |
| PTVS5V0Z1UCL | Transient Voltage Suppressor | Production | |
| PTVS5V0Z1UPC | Transient Voltage Suppressor | Production | |
| PTVS5V0Z1USK | Transient voltage suppressor in DSN1608-2 for mobile applications | Production | |
| PTVS5V0Z1USKN | Transient voltage suppressor in DSN1608-2 for mobile applications | EndOfLife | |
| PTVS5V0Z1USKP | Transient voltage suppressor in DSN1608-2 for mobile applications | Production | |
| PTVS5V5D1BL | Ultra compact transient voltage suppressor | Production | |
| PTVS5V5D1BL-Q | Ultra compact transient voltage supressor | Production | |
| PTVS5V5Z1UPC | Transient Voltage Suppressor | Production | |
| PTVS6V3D1UCL | Transient Voltage Suppressor | Production | |
| PTVS6V3Z1UCL | Transient Voltage Suppressor | Production | |
| PTVS6V3Z1UPC | Transient Voltage Suppressor | Production | |
| PTVS7V5Z1USK | Transient voltage suppressor in DSN1608-2 for mobile applications | Production |
Visit our documentation center for all documentation
Brochure (1) |
|||
|---|---|---|---|
| 文件名稱 | 標題 | 類型 | 日期 |
| Nexperia_document_brochure_ESD-Protection-Applications_022017.pdf | ESD Protection Application guide | Brochure | 2018-12-21 |
Leaflet (1) |
|||
| 文件名稱 | 標題 | 類型 | 日期 |

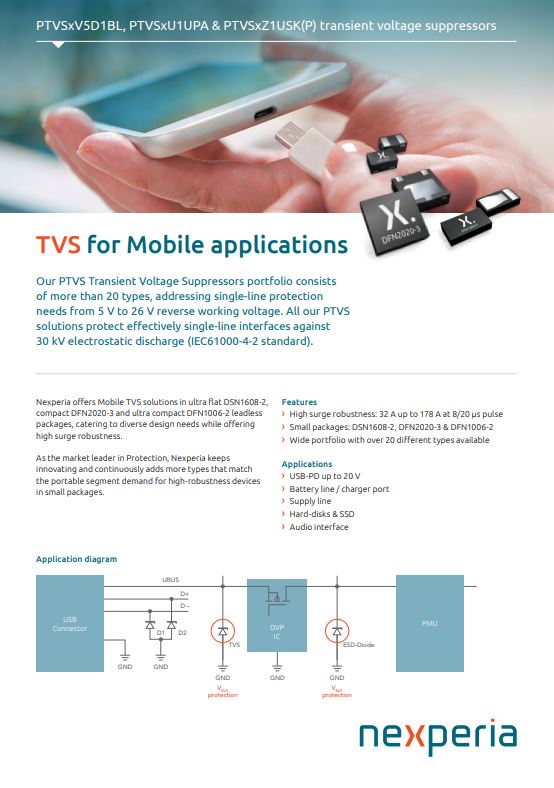

| Nexperia_document_leaflet_MobileTVS_201804.pdf | TVS for Mobile applications | Leaflet | 2018-05-08 |
Marcom graphics (1) |
|||
| 文件名稱 | 標題 | 類型 | 日期 |

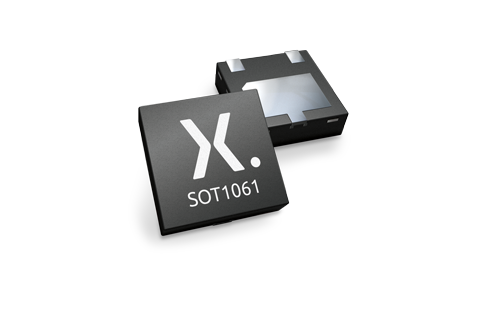

| DFN2020-3_SOT1061_mk.png | plastic, thermal enhanced ultra thin small outline package; 3 terminals; 1.3 mm pitch; 2 mm x 2 mm x 0.65 mm body | Marcom graphics | 2017-01-28 |
Selection guide (2) |
|||
| 文件名稱 | 標題 | 類型 | 日期 |
| Nexperia_Selection_guide_2024.pdf | Nexperia Selection Guide 2024 | Selection guide | 2024-10-02 |
| Nexperia_Selection_guide_2023.pdf | Nexperia Selection Guide 2023 | Selection guide | 2023-05-10 |
White paper (1) |
|||
| 文件名稱 | 標題 | 類型 | 日期 |
| WhitePaper_TVS_Diodes.pdf | What are TVS diodes and how do you choose the right one? | White paper | 2020-02-12 |
