Features and benefits
- Input voltage range: 2.7 V to 5 V
- Programmable output voltages:
- OUTP: +4 V to +6 V (0.1 V step)
- OUTN: -4 V to -6 V (0.1 V step)
- ± 1% high output voltage accuracy
- Excellent transient response
- I²C Interface for flexible output programming
- Wafer level chip-scale package; 15 bumps
- 1.16 × 1.96 × 0.62 mm body (0.4 mm pitch)
Applications
- Smart phones
- Tablets
- Virtual Reality (VR) headsets
- Internet-of-Things (IoT)
- White goods/factory automation HMI
產品
| 型號 | 描述 | 狀態 | 快速訪問 |
|---|---|---|---|
| NEX10001UB | 220 mA dual output LCD bias power supply | Production | |
| NEX10000UB | 80 mA dual output LCD bias power supply | Production | |
| NEX10000AUB | 120 mA dual output LCD bias power suppl | Production |
Visit our documentation center for all documentation
Leaflet (2) |
|||
|---|---|---|---|
| 文件名稱 | 標題 | 類型 | 日期 |
| nexperia_document_leaflet_LCD_bias_CN.pdf | 適用于智能手機和平板電腦的 NEX10000/1 2.7~5 V LCD偏壓電源IC | Leaflet | 2024-01-11 |
| nexperia_document_leaflet_LCD_bias.pdf | NEX10000/1 2.7 to 5 V LCD bias power supply IC for smartphones and tablets | Leaflet | 2024-01-05 |
Outline 3d (1) |
|||
| 文件名稱 | 標題 | 類型 | 日期 |

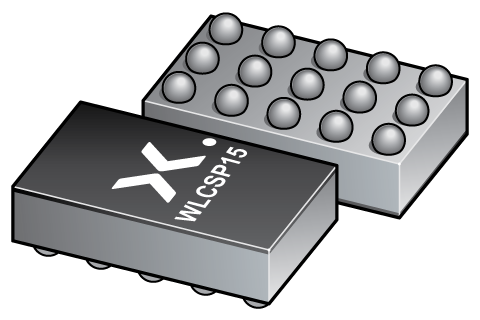

| sot8054-1_3d.png | WLCSP15; SOT8054 | Outline 3d | 2022-11-15 |
