Key features and benefits
- 1 mm package height for thin PCB designs
- Up to 60% footprint savings - CFP compared to SMx
- High current pulse capability due to solid copper clip-bond
- High efficiency planar technology / High power density
- Low magnetic inductance optimizes switching behavior
- 200 V hyper-fast switching parts with optimized recovery time (trr) of < 20 ns
- High speed switching capability
- Low voltage drop (VF @ IF(max) ~ 1 V)
- Low leakage current, also at high temperature
- AEC-Q101 qualified parts (175 °C Tj (max))
Key applications
- Polarity protection
- DC/DC conversion
- AC/DC conversion
- Freewheeling of inductive load
- Standard switching applications
- High-speed switching applications
- Engine and Transmission Control Unit
- Solenoid control
- Piezo injection
Latest news and blogs
Latest videos
參數搜索
Automotive recovery rectifiers
數據加載中，請稍候...參數搜索不可用。
產品
| 型號 | 描述 | 狀態 | 快速訪問 |
|---|---|---|---|
| PNE200100CPE-Q | 200 V, 2 x 5 A dual common cathode hyperfast recovery rectifier | Production | |
| PNE200100EPE-Q | 200 V, 10 A hyperfast recovery rectifier | Production | |
| PNE20010ER-Q | 200 V, 1 A hyperfast recovery rectifier | Production | |
| PNE20010EXD-Q | 200 V, 1 A hyperfast recovery rectifier | Production | |
| PNE20020AER-Q | 200 V, 2 A hyperfast recovery rectifier | Production | |
| PNE20020EP-Q | 200 V, 2 A hyperfast recovery rectifier | Production | |
| PNE20020ER-Q | 200 V, 2 A hyperfast recovery rectifier | Production | |
| PNE20020EXD-Q | 200 V, 2 A hyperfast recovery rectifier | Production | |
| PNE20030EP-Q | 200 V, 3 A hyperfast ?recovery rectifier | Production | |
| PNE20040CPE-Q | 200 V, 2 x 2 A dual common cathode hyperfast recovery rectifier | Production | |
| PNE20040EP-Q | 200 V, 4 A hyperfast switching recovery rectifier | Production | |
| PNE20040EPE-Q | 200 V, 4 A hyperfast recovery rectifier | Production | |
| PNE20050EP-Q | 200 V, 5 A hyperfast recovery rectifier | Production | |
| PNE20060CPE-Q | 200 V, 2 x 3 A dual common cathode hyperfast recovery rectifier | Production | |
| PNE20060EPE-Q | 200 V, 6 A hyperfast recovery rectifier | Production | |
| PNE20080CPE-Q | 200 V, 2 x 4 A dual common cathode hyperfast recovery rectifier | Production | |
| PNE20080EPE-Q | 200 V, 8 A hyperfast recovery rectifier | Production | |
| PNE650100EJ-Q | 650 V, 10 A hyperfast?recovery rectifier | Production | |
| PNE650150EJ-Q | 650 V, 15 A hyperfast?recovery rectifier | Production | |
| PNE650200EJ-Q | 650 V, 20 A hyperfast?recovery rectifier | Production | |
| PNS40010AER-Q | 400 V, 1 A high power density, standard switching time recovery rectifier | Production | |
| PNS40010ER | 400 V, 1 A high power density, standard switching time recovery rectifier | EndOfLife | |
| PNU650100EJ-Q | 650 V, 10 A ultrafast?recovery rectifier | Production | |
| PNU65010EP-Q | 650 V, 1 A ultrafast recovery rectifier | Production | |
| PNU65010ER-Q | 650 V, 1 A ultrafast recovery rectifier | Production | |
| PNU650150AEJ-Q | 650 V, 15 A ultrafast?recovery rectifier | Production | |
| PNU650150EJ-Q | 650 V, 15 A ultrafast?recovery rectifier | Production | |
| PNU650200AEJ-Q | 650 V, 20 A ultrafast?recovery rectifier | Production | |
| PNU650200EJ-Q | 650 V, 20 A ultrafast?recovery rectifier | Production | |
| PNU65020EP-Q | 650 V, 2 A ultrafast?recovery rectifier | Production | |
| PNU650300AEJ-Q | 650 V, 30 A ultrafast?recovery rectifier | Production | |
| PNU65030EP-Q | 650 V, 3 A ultrafast?recovery rectifier | Production |
Visit our documentation center for all documentation
Brochure (1) |
|||
|---|---|---|---|
| 文件名稱 | 標題 | 類型 | 日期 |
| Nexperia_document_brochure_Recovery_rectifier.pdf | Hyperfast recovery, space-saving devices | Brochure | 2024-05-08 |
Data sheet (4) |
|||
| 文件名稱 | 標題 | 類型 | 日期 |
| PNU65010EP-Q.pdf | 650 V, 1 A ultrafast recovery rectifier | Data sheet | 2022-10-18 |
| PNU65010ER.pdf | 650 V, 1 A ultrafast ?recovery rectifier | Data sheet | 2022-09-30 |
| PNU65010ER-Q.pdf | 650 V, 1 A ultrafast recovery rectifier | Data sheet | 2022-09-30 |
| PNU65010EP.pdf | 650 V, 1 A ultrafast?recovery rectifier | Data sheet | 2022-09-30 |
Leaflet (1) |
|||
| 文件名稱 | 標題 | 類型 | 日期 |
| Nexperia_Document_Leaflet_recovery_rectifiers_CHN_2020.pdf | 恢復整流器 | Leaflet | 2020-03-16 |
Marcom graphics (1) |
|||
| 文件名稱 | 標題 | 類型 | 日期 |

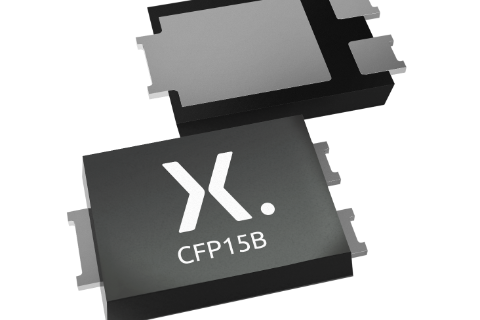

| RS2961_RS2619_CFP15B-Combi.png | CFP15B 3D package MARCOM image | Marcom graphics | 2021-11-25 |
