主要特性和優勢
- 存儲時間短
- 小型和超小型封裝
- VCEO最高可達40 V（NPN型）或- 60 V（PNP型）
- IC范圍最高可達800 mA
關鍵應用
- 通用開關
- 邏輯電平轉換器
參數搜索
Switching transistors single/double
數據加載中，請稍候...參數搜索不可用。
產品
| 型號 | 描述 | 狀態 | 快速訪問 |
|---|---|---|---|
| BSR14 | NPN switching transistors | Production | |
| BSR16-Q | 60 V, 600 mA, PNP switching transistor | Production | |
| BSV52 | NPN switching transistor | Production | |
| MMBT2222A | NPN switching transistor | Production | |
| MMBT3904-Q | 40 V, 200 mA NPN switching transistor | Production | |
| MMBT3906-Q | 40 V, 200 mA PNP switching transistor | Production | |
| PMBT2222A-Q | NPN switching transistor | Production | |
| PMBT2222AYS-Q | 40 V, 600 mA, double NPN switching transistor | Production | |
| PMBT2227AYS-Q | 40 V, 600 mA, NPN/PNP double switching transistor | Production | |
| PMBT2369 | NPN switching transistor | Production | |
| PMBT2907 | 40V, 600 mA, PNP switching transistor | Production | |
| PMBT2907A-Q | 60 V, 600 mA, PNP switching transistor | Production | |
| PMBT2907AM | 60 V, 600 mA PNP switching transistor | Production | |
| PMBT2907AQA | 60V, 600 mA PNP switching transistor | Production | |
| PMBT2907AYS | 60V, 600 mA, double PNP switching transistor | Production | |
| PMBT3904-Q | 40 V, 200 mA NPN switching transistor | Production | |
| PMBT3904MB | 40 V, 200 mA NPN switching transistor | Production | |
| PMBT3906-Q | PNP switching transistor | Production | |
| PMBT3906M | 40 V, 200 mA PNP switching transistor | Production | |
| PMBT3906MB | 40 V, 200 mA PNP switching transistor | Production | |
| PMBT4401-Q | 40 V, 600 mA NPN switching transistor | Production | |
| PMBT4401YS | 40 V, 600 mA, double NPN switching transistor | Production | |
| PMBT4403-Q | 40 V, 600 mA PNP switching transistor | Production | |
| PMBT4403YS | 40V, 600 mA double PNP switching transistor | Production | |
| PMSS3906 | PNP switching transistor | Production | |
| PMST2222 | NPN switching transistors | Production | |
| PMST2222A | NPN switching transistors | Production | |
| PMST2369 | NPN switching transistor | Production | |
| PMST2907A-Q | 60 V, 600 mA PNP switching transistor | Production | |
| PMST3904-Q | NPN switching transistor | Production | |
| PMST3906 | 40 V, 200 mA PNP switching transistor | Production | |
| PMST4401-Q | NPN switching transistor | Production | |
| PXT2222A | NPN switching transistor | Production | |
| PXT2907A | 60 V, 600 mA, PNP switching transistor | Production | |
| PXT4401 | NPN switching transistor | Production | |
| PZT2222A | NPN switching transistor | Production | |
| PZT2907A | PNP switching transistor | Production | |
| PZT4401 | NPN switching transistor | Production | |
| PZT4403-Q | 40 V, 600 mA PNP switching transistor | Production |
Visit our documentation center for all documentation
Marcom graphics (1) |
|||
|---|---|---|---|
| 文件名稱 | 標題 | 類型 | 日期 |

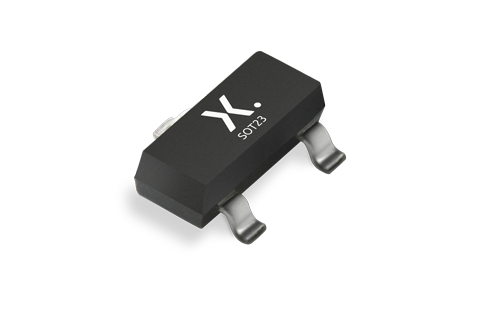

| SOT23_mk.png | plastic, surface-mounted package; 3 terminals; 1.9 mm pitch; 2.9 mm x 1.3 mm x 1 mm body | Marcom graphics | 2017-01-28 |
Selection guide (1) |
|||
| 文件名稱 | 標題 | 類型 | 日期 |
| Nexperia_Selection_guide_2023.pdf | Nexperia Selection Guide 2023 | Selection guide | 2023-05-10 |
