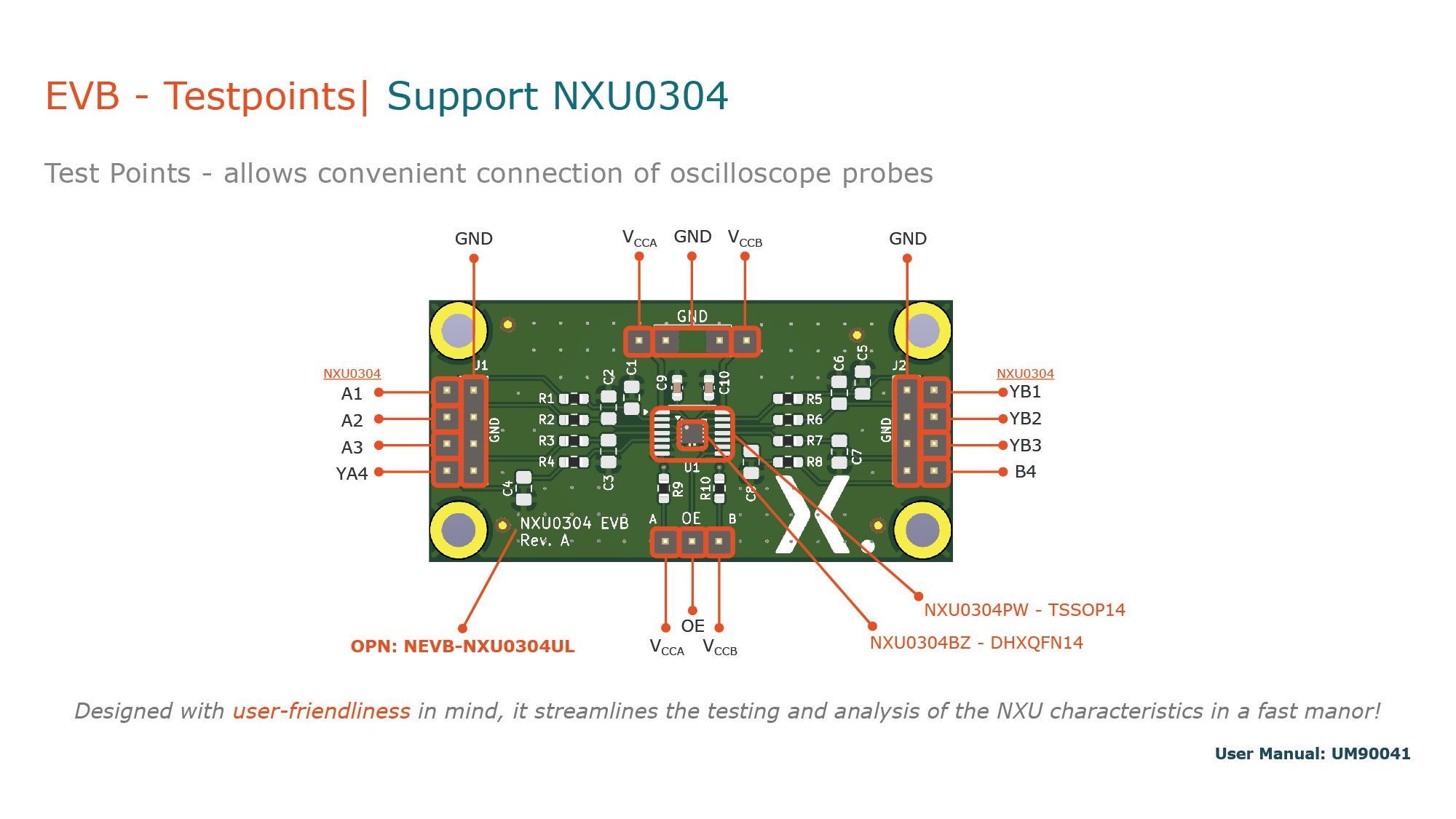

NXU0304評估板
該NEVB-NXU0304評估板用于評估Nexperia NXU0104的產品性能和行為。
該評估板將串聯電阻和并聯負載施加到每個輸入/輸出線路上，模擬系統中使用的器件。通過跳線選擇輸出使能(OE)，上拉至VCCA或VCCB電源軌，每個輸入都有一個施密特觸發器以適應緩慢或有噪聲的輸入信號，同時配有弱6.5 M?下拉電阻以適應浮動輸入信號。
主要特性與優勢
- 寬電源電壓范圍：
VCCA：0.9 V至5.5 V
VCCB：0.9 V至5.5 V
- 低功耗，電源電壓范圍1.1 V至5.5 V
3 µA (Tamb = 25 ℃)
5 µA（Tamb = -40℃至+125℃）
- 施密特觸發器輸入，輸入上集成了靜態高歐姆下拉電阻
- 最大數據速率：
250 Mbps（≥ 1.8 V至5 V轉換）
- 輸出使能(OE)允許連接至VCCA或VCCB域
- 任一電源電壓低至100 mV以下或斷開連接（浮動）時進入掛起模式
- 低噪聲過沖和欠沖小于VCCO的10%
- IOFF電路提供部分掉電工作模式
板上的產品 (7)
| Type number | Description | Status | Quick access | |
|---|---|---|---|---|
|
NXU0304BQ-Q100 | 4-bit dual-supply voltage level translating buffer; 3-state | Production | |
|
|
NXU0304BQ | 4-bit dual-supply voltage level translating buffer; 3-state | Production | |
|
NXU0304BZ | 4-bit dual-supply voltage level translating buffer; 3-state | Production | |
|
NXU0304GU12-Q100 | 4-bit dual-supply voltage level translating buffer; 3-state | Production | |
|
|
NXU0304GU12 | 4-bit dual-supply voltage level translating buffer; 3-state | Production | |
|
NXU0304PW-Q100 | 4-bit dual-supply voltage level translating buffer with Schmitt-trigger; 3-state | Production | |
|
|
NXU0304PW | 4-bit dual-supply voltage level translating buffer; 3-state | Production |
相關板塊 (2)
| Board | Description | Type | Quick links | Shop link | |
|---|---|---|---|---|---|
|
nevb-nxu0204 | NXU0204 evaluation board | Evaluation board | 訂單 | |
|
nevb-nxu0104 | NXU0104 evaluation board | Evaluation board | 訂單 |
板上的產品 (7)
| Type number | Description | Status | Quick access | |
|---|---|---|---|---|
|
|
NXU0304BQ-Q100 | 4-bit dual-supply voltage level translating buffer; 3-state | Production | |
|
|
NXU0304BQ | 4-bit dual-supply voltage level translating buffer; 3-state | Production | |
|
|
NXU0304BZ | 4-bit dual-supply voltage level translating buffer; 3-state | Production | |
|
|
NXU0304GU12-Q100 | 4-bit dual-supply voltage level translating buffer; 3-state | Production | |
|
|
NXU0304GU12 | 4-bit dual-supply voltage level translating buffer; 3-state | Production | |
|
|
NXU0304PW-Q100 | 4-bit dual-supply voltage level translating buffer with Schmitt-trigger; 3-state | Production | |
|
|
NXU0304PW | 4-bit dual-supply voltage level translating buffer; 3-state | Production |
相關板塊 (2)
| Board | Description | Type | Quick links | Shop link | |
|---|---|---|---|---|---|
|
|
nevb-nxu0204 | NXU0204 evaluation board | Evaluation board | 訂單 | |
|
|
nevb-nxu0104 | NXU0104 evaluation board | Evaluation board | 訂單 |
文檔 (1)
| 文件名稱 | 標題 | 類型 | 日期 |
|---|---|---|---|
| UM90041 | NXU0104, NXU0204 and NXU0304 evaluation board | User manual | 2024-09-11 |
